Location: 04 Masonry : Chimney & Fireplace

Just the fire brick part. Looks good in plan, section, and elevation. For a correct section, align the polygon wall of the firebox core with the inside of the Lining object, then subtract the object from the wall.

Images below the fold.

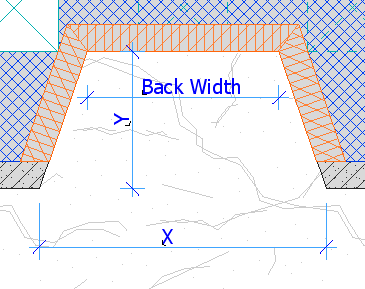

Most of the parameters

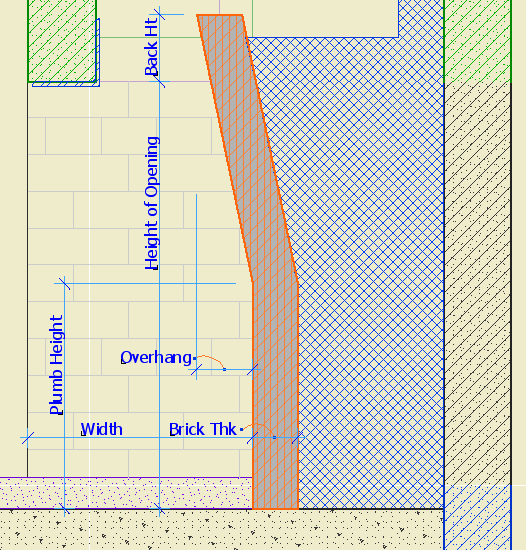

A few more
